KLM S58 Single Turbo Kit PTE 7275 – M Powerhouse – 1/4 Mile 8.561 / @166.24 MPH KLM S58 Single Turbo Kit PTE 7275 – M Life Autocare – 1/4 Mile 8.564 / @137.74 MPH KLM S58 Single Turbo Kit PTE 7275 – BimmerPR – 1/4 Mile 8.677 / @160.94 MPH
*Optional GESI High Flow is designed to meet current regulations on vehicles producing up to 1200hp. However, selection of this option doesNOTimply this product is suitable for emission controlled vehicles. This product in all variations is still strictly intended for off-road/competition use only and can not be used on public roadways with registered vehicles. Customers are solely responsible for complying with their state, federal, and local ordnances, please review our full terms and conditions upon check out. *
Fits RWD and xDrive Model

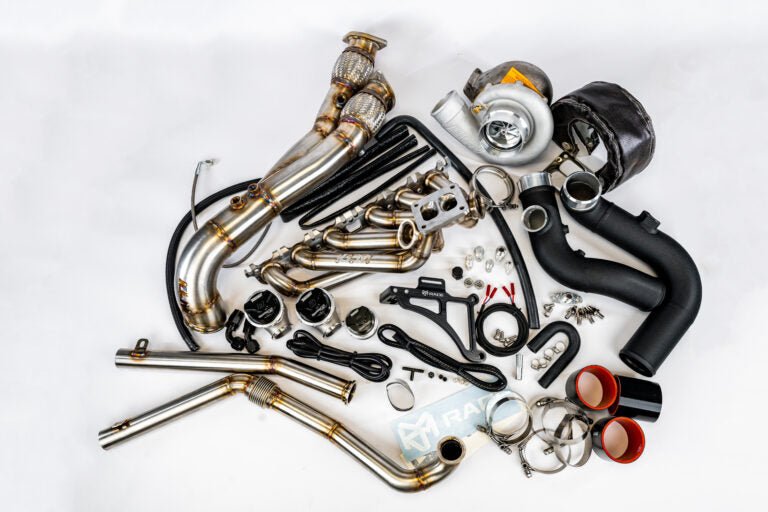

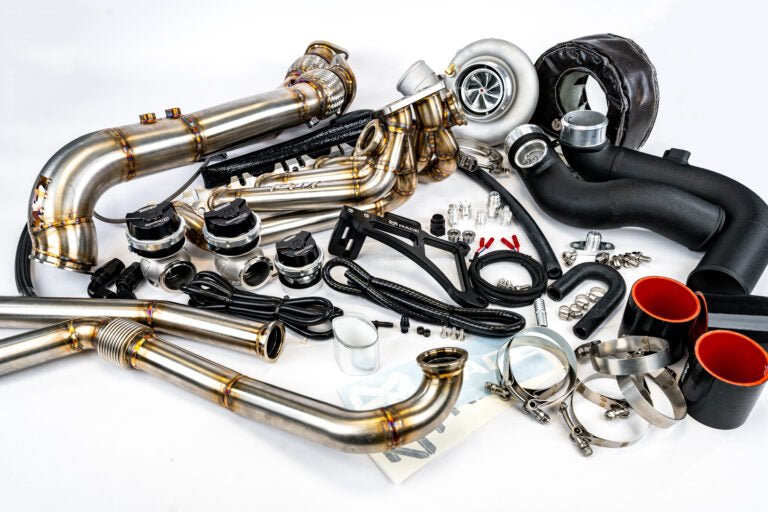

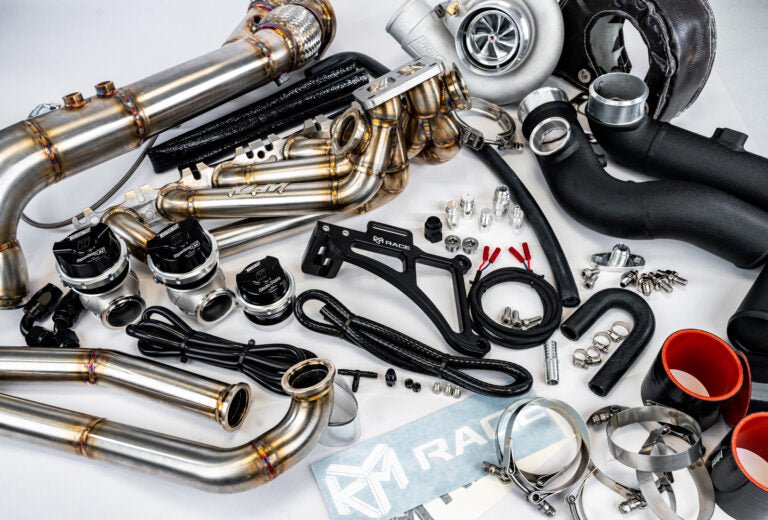

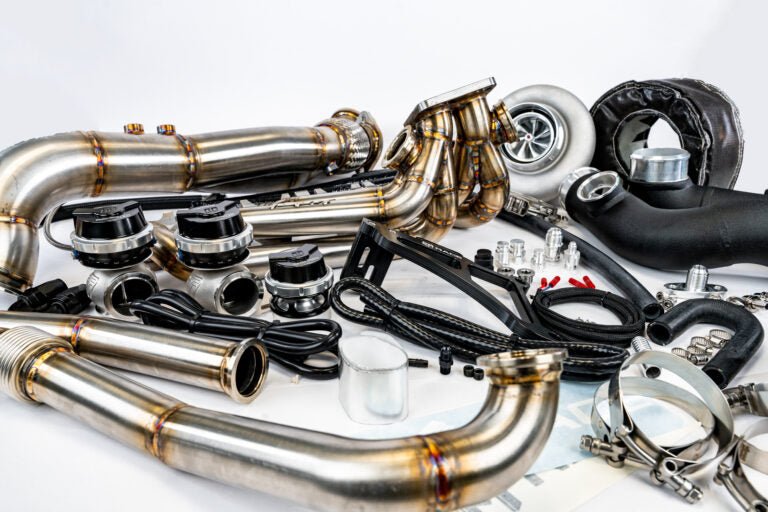

Kit Includes:
1.) Turbo 2.) Wastegates 2x Turbosmart 45mm 3.) Coupler 3” (x3) 4.) Hose Clamps 3” (x3) 5.) Manifold True Twin Scroll T4 Divided Dual Wastegate 6.) 3.5″ Down Pipe 7.) Dump Tubes (X2) 8.) Intercooler Piping with 3 Weld Fittings/ 1 BOV Flange 9.) V-Band Clamp for Down Pipe 10.) Turbo Studs & Turbo Gasket (Trimmed Studs) 11.) 10AN Nylon Braid Hose 2ft. 12.) 10AN Hose end Fitting 1 X 45Degree 13.) 10 AN Hose end fitting 1 X 90 degree 14.) Stainless Braid Oil feed Line 2ft. Vibrant 15.) Silicon Vacuum Hose 6ft. 16.) 4AN to 4AN 90 Degree Oil Feed Fitting 17.) Oil Return Block Off Fitting 18.) Oil Feed Block Off Fitting 19.) Oil Return Block Fitting 10AN (use factory bolt and O-ring) 20.) Oil Feed Block Fitting 4AN (use factory bolt and O-ring) 21.) Drain Block Off Front (use factory bolt and O-ring) 22.) Drain Block Off Cap (Factory Style) 23.) Turbo Oil Drain Fitting / with Bolts and O-Ring (x2) 24.) M6x12mm Bolts for Intercooler Piping (X3) [1x for map, 2X for Rad Bracket] 25.) Heat Tape (20 Inches) 26.) Vacuum T Fittings (X2) 27.) KLM Stickers 28.) 1/8″ NPT Plugs (x2) 29.) O2 Sensor Block Off (X2) 30.) Billet Throttle Body Adapter
Coolant Overflow Relocation Kit:
31.a) Relocation Bracket 31.b) 180° Hose 31.c) 90° Hose (22in cut form 90) 31.d) Aluminum Barb Fitting 31.e) 1/4″ Heater Hose (thicker than vacuum hose) 45in 31.f) Brown and Black Wire 5ft. 31.g) 5ft. Wire Loom 31.h) 4X Wire Connector 31.i) 4X 1/4″ Hose Clamps 31.j) 4X 5/8″ Hose Clamps 32.) Turbo drain and feed line heat sleeve (2.5 ft) 33.) Vacuum line heat sleeve (2.5 ft)
**Note** Under belly has to be trimmed for dump tube clearance.
