FORE – FC2 Dual Pump Controller

• Electrical solution for dual pump return fuel systems for efficient load handling and power distribution
• Simple trigger system works with basic switched 12V+ on/off (6.5V+ minimum)
• Runs two pumps full time (see FC3 for staging pumps)
• 30 amp x 2 capacity, 99.3% efficient
• Replaceable internal fuses for each pump
• May also be used on other DC motors such as intercooler, water (check current requirements)
• NEW High Current APP® connectors pre-installed on main power/ground wires for maximum connection integrity and reliability

AVAILABLE CONFIGURATIONS

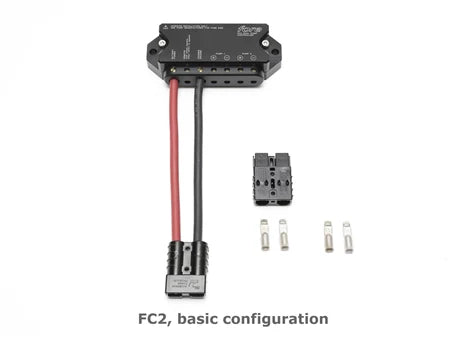

• Basic: comes with unassembled APP® connector for main power and ground

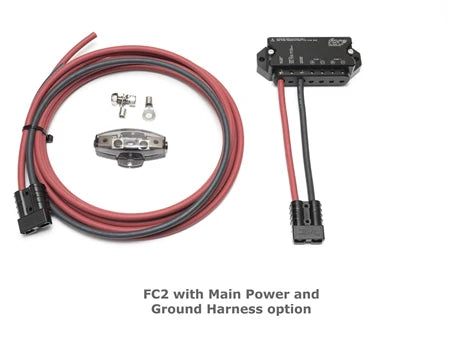

• Add Main Power and Ground Harness: 15′ 6 AWG power, 3′ 6 AWG ground assembled to APP® power connector with 80A inline fuse.

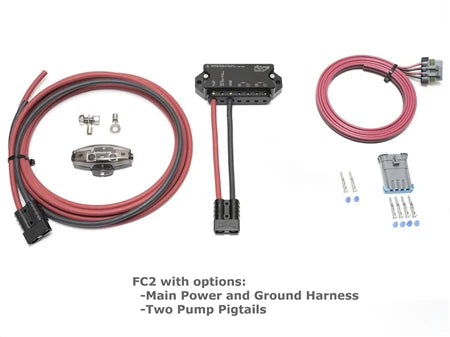

• Add Pump Pigtails: two pairs of 7′ 12 AWG pump wires assembled to Delphi pump connectors and unassembled male Delphi connectors.

WARNINGS

• do not operate with over 16.5V supplied power
• for interior installation only
• run only one pump per output (two maximum)
